MARCA :Hanwha Techwin Wisenet

Cámara Bullet AI IR 2 Megapixel (1080p) / Lente 2.8-12 mm / IR 50 m (164 ft) / IP66-IP67-IK10 / Análisis IA / Wisenet 9 / Dual NPU / -40°C a +60°C / PoE

Cámara Bullet AI IR 2 Megapixel (1080p) / Lente 2.8-12 mm / IR 50 m (164 ft) / IP66-IP67-IK10 / Análisis IA / Wisenet 9 / Dual NPU / -40°C a +60°C / PoE

MODELO:

XNO-A6084R

$ 17,300.31 MXN
$ 17,300.31 MXN
Oferta Agotado
Impuesto incluido.

- ENVIAMOS A TODA LA REPUBLICA MEXICANA

Los precios pueden cambiar diariamente debido al tipo de cambio

código fiscal

Bajas existencias: quedan 1

SI TU PRODUCTO APARECE COMO "AGOTADO", CONTÁCTANOS Y UN ASESOR TE DARA LA NUEVA FECHA DE STOCK. PARA PRODUCTOS "SOBRE PEDIDO" TE PROPORCIONAREMOS UNA FECHA DE ENTREGA ESTIMADA.
Comprar por WhatsApp

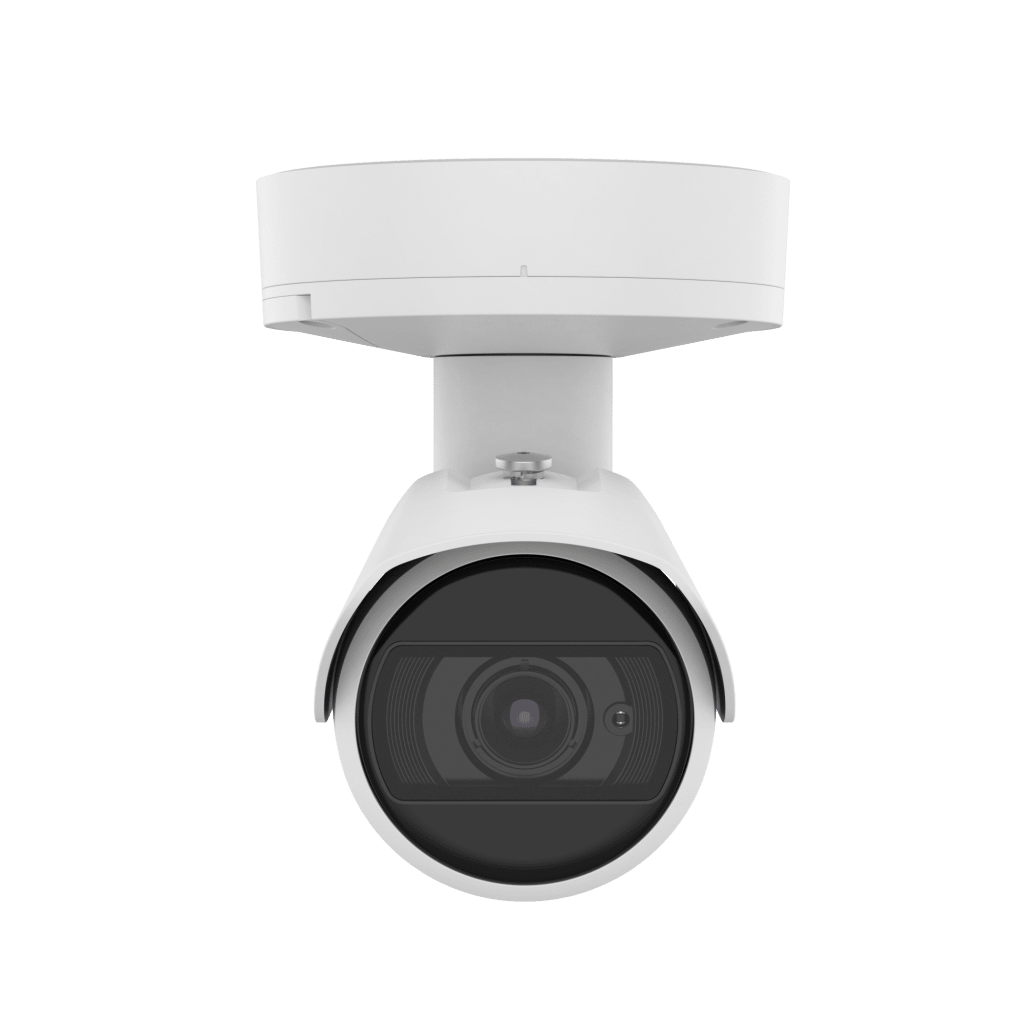

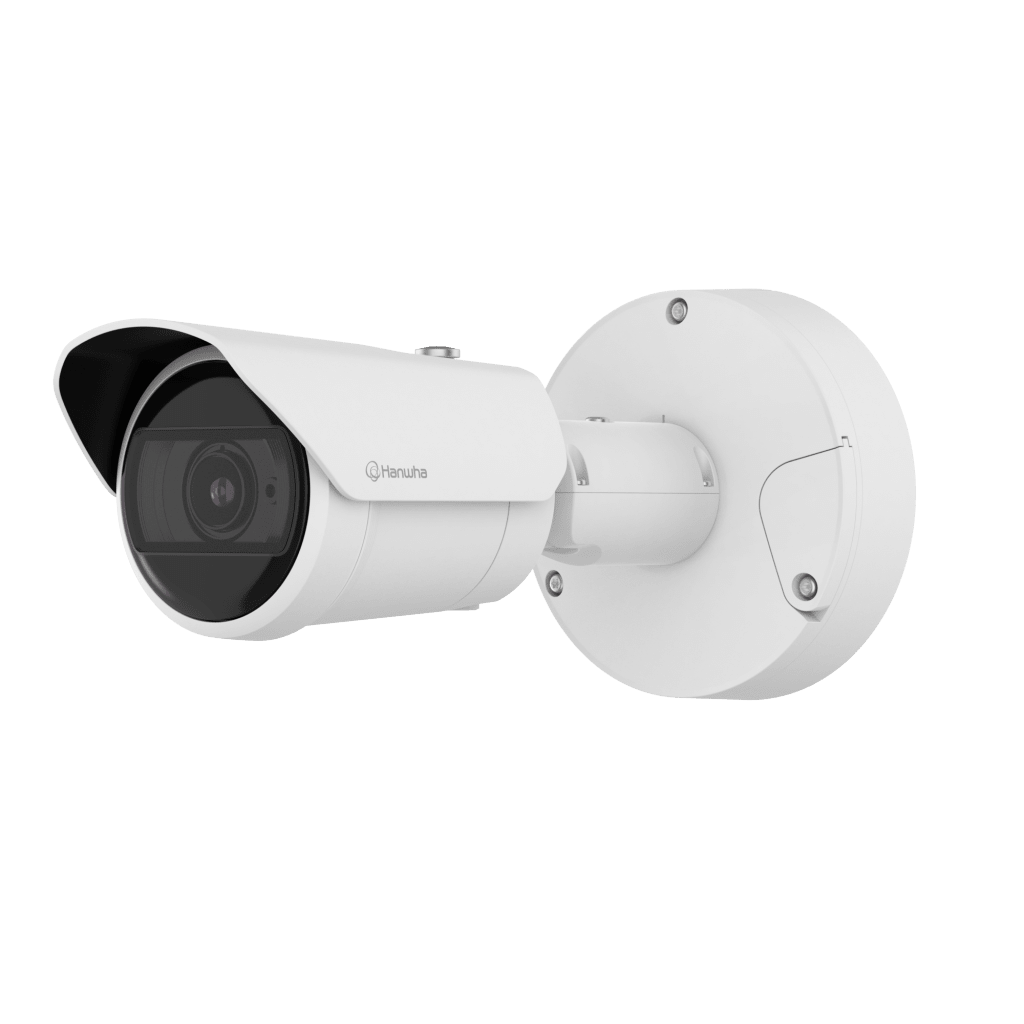

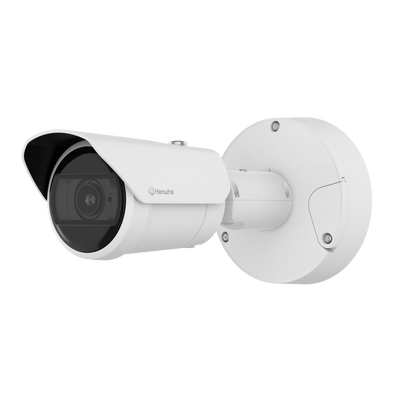

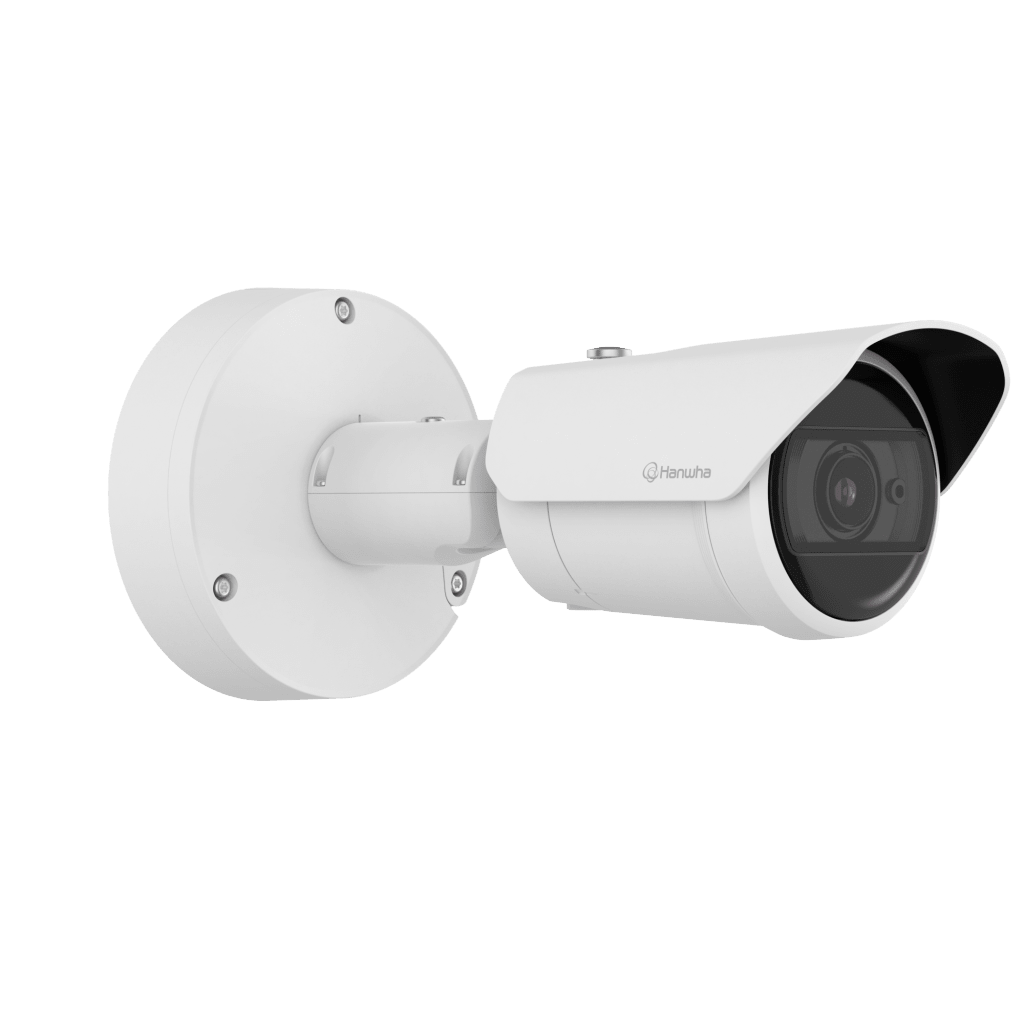

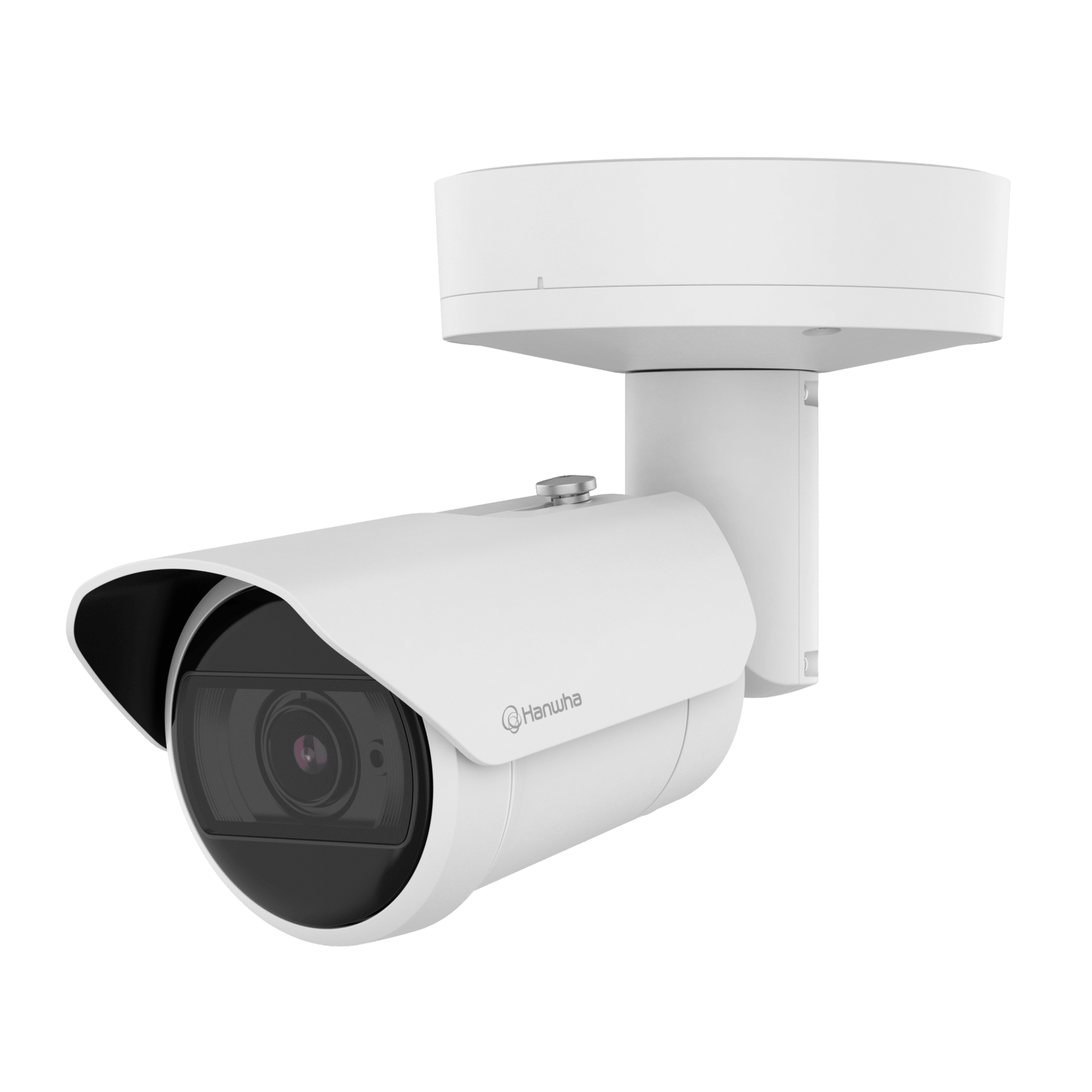

Hanwha Vision XNO-A6084R

2MP AI IR Bullet Camera

Professional bullet camera featuring dual NPU architecture for AI-based image enhancement and advanced analytics. Equipped with a 1/2.8" CMOS sensor delivering 1920x1080 resolution at up to 60fps (H.265/H.264), motorized 2.8-12mm lens with 4.3x optical zoom, and 150dB WDR. The Wisenet 9 SoC integrates 4GB RAM and 8GB eMMC flash, supporting edge storage up to 1TB microSD card. Comprehensive ONVIF conformance (Profile G, S, T, M), MQTT, and Hanwha Open Platform API enables deep integration into VMS and third-party systems.

Designed for extreme environments with IP66/IP67/IK10 and NEMA 4X rating, operational from -40°C to +60°C. AI analytics include object detection, virtual line/area, people/vehicle counting, heatmap, queue management, face mask detection, slip & fall, and business intelligence. Security features include secure boot, encrypted firmware, 802.1X authentication, and FIPS 140-3 level 3 secure element.

Key Features

Image Resolution: 2MP (1920x1080)
Focal Length: 2.8-12mm (4.3x optical)
IR Length: 50m (850nm)
Ingress Protection: IP66, IP67, IK10, NEMA 4X
Dual NPU: AI-based image enhancement & analytics
Wide Dynamic Range: 150dB
Min. Illumination: Color: 0.02 lux, B/W: 0.002 lux
SoC: Wisenet 9 with 4GB RAM / 8GB flash

Video & Imaging

Imaging Device: 1/2.8" CMOS
Max. Resolution: 1920x1080 (2MP)
Max. Framerate: 60fps @ H.265/H.264, 30fps @ MJPEG
Min. Illumination: Color: 0.02 lux (1/30sec, 30IRE); B/W: 0.002 lux
WDR: 150dB
Digital Noise Reduction: WiseNR II (AI engine), SSNR V
Digital Image Stabilization: Support
Defog: Support
Video Rotation: Flip, Mirror, Hallway view (90°/270°)
LDC: Support (Fill/Stretch mode)
Electronic Shutter: Min/Max/Anti-flicker, AI-based prefer shutter, 2 ~ 1/40,000 sec
Day & Night: Auto (ICR)

Lens & Optics

Focal Length: 2.8~12mm
Optical Zoom: 4.3x
Aperture (Wide/Tele): F1.4 / F3.6
Angular FOV: Horizontal: 120°~27°, Vertical: 63°~15°, Diagonal: 143°~32°
Min. Object Distance: 0.5m (1.64ft)
Focus Control: Simple focus, Manual
Lens Type: P-iris (IR corrected)

AI Analytics

Analytics Events: Object detection, Virtual line (crossing/direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area (loitering/intrusion/enter/exit/appear/disappear), Defocus detection, Tampering, Audio detection, Shock detection
Business Intelligence: People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
Classified Object Types: Person, Face, Vehicle, License plate
Attributes: Person: Upper/lower clothes color, gender, bag; Vehicle: type (car/bus/truck/motorcycle/bicycle), color; Face: age, gender, face mask, glasses
Thumbnail: BestShot

Network & Protocols

Ethernet: Metal shielded RJ-45 (10/100BASE-T)
Video Compression: H.265/H.264 (Main/Baseline/High), MJPEG
Audio Compression: G.711, G.726, AAC-LC, OPUS
Smart Codec: WiseStream (AI engine)
Streaming: Unicast (up to 20 users), Multicast, up to 5 profiles, 3 virtual channels
Protocols: IPv4/IPv6, TCP/UDP, RTSP, NTP, HTTP/HTTPS, SSL/TLS, DHCP, FTP/SFTP, SNMPv1/v2c/v3, MQTT, SMTP, Syslog, 802.1X, and more.
API: ONVIF (Profile G, S, T, M), SUNAPI (HTTP API), Hanwha Open Platform
Direct Cloud Connection: Support

Security Features

OS/Firmware Protect: Encrypted firmware, Secure boot, Signed firmware
User Authentication: Digest authentication, Brute-force attack prevention
Network Authentication: IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication: HTTPS, WSS, SRTP
Access Control: IP-based, MAC-based, Auto logout
Data Protect: Encryption credentials, Encrypt compress for live recording export
Secure Element: FIPS 140-3 level 3, CC EAL6+, Consumer IoT Security Standard (ETSI EN 303 645)

Mechanical & Electrical

Dimensions: ø93.4 x 276.6 mm (3.68 x 10.89")
Weight: 1,660 g (3.66 lb)
Material: Aluminum, PC, Hard-coated window
Color / RAL: White / RAL9003
Pan/Tilt/Rotate: Pan: 0°~350°, Tilt: 0°~90°, Rotate: 0°~350°
Input Voltage: PoE (IEEE802.3af, Class3)
Power Consumption: Max 10.2W, typical 5.0W
WisePower: Power monitoring, Eco mode

Environmental & Edge Storage

Operating Temp.: -40°C ~ +60°C (-40°F ~ +140°F), max +74°C (NEMA-TS 2)
Storage Temp.: -50°C ~ +60°C (-58°F ~ +140°F)
Humidity: 0~100% RH (condensing) operating; 0~90% RH (non-condensing) storage
Edge Storage: Micro SD/SDHC/SDXC slot, max 1TB
SoC / Memory: Wisenet 9 with Dual NPU, 4GB RAM, 8GB eMMC
Alarm I/O: 2 configurable ports, supports external I/O box

Certifications & Standards

EMC: FCC Class A, CE/UKCA EN55032 Class A, EN50130-4, VCCI Class A, RCM, KS C 9832
Safety: UL 62368-1, CSA C22.2, IEC 62471
Environmental: IP66, IP67, IK10, NEMA TS 2-2013, NEMA 250 type 4X, IEC 60068-2 (series)
Supply Chain Security: SBOM, Secure element certified

Audio & Alarm

Audio In/Out: Selectable (mic in/line in), Line out
Alarm Triggers: Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption
Alarm Events: File upload (email/FTP/SFTP), video clip upload (FTP/SFTP), email notification, SD/NAS recording, Alarm output, PTZ preset, HTTP/HTTPS/TCP message, Audio clip playback, MQTT publication
Video Out: USB Type C (preview/installation only, requires WiFi dongle)

IR Illumination

Light Type: IR LED
IR Viewable Length: 50 meters
IR Wavelength: 850nm

General & Compatibility

EPA (Effective Projected Area): 0.02 m²
Conduit / Gang Box: Optional adapter for conduit; supports single/double/4" octagon/square boxes
Device ID / Certificate: Device certificate (Hanwha Vision Root CA)
