MARCA :PLANET

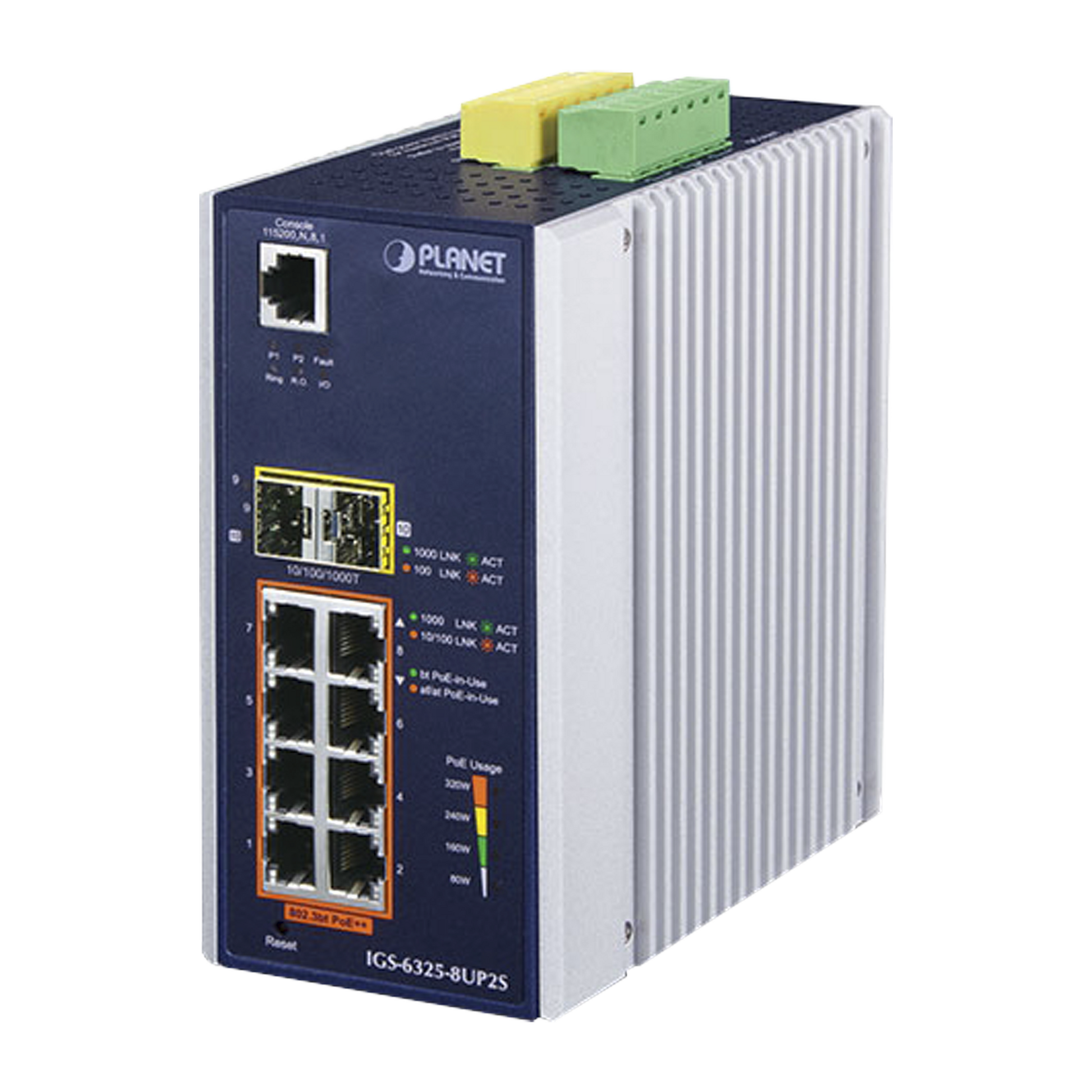

Switch Industrial Administrable Capa 3, 8 Puertos Gigabit PoE 802.3bt+, 2 Puertos 1 G / 2.5 G SFP+

Switch Industrial Administrable Capa 3, 8 Puertos Gigabit PoE 802.3bt+, 2 Puertos 1 G / 2.5 G SFP+

MODELO:

IGS-6325-8UP2S

$ 12,332.45 MXN
$ 12,332.45 MXN
Oferta Agotado ó Sobre pedido

MAS IVA (16%)

- ENVIAMOS A TODA LA REPUBLICA MEXICANA

Los precios pueden cambiar diariamente debido al tipo de cambio

código fiscal

Agotado ó Sobre pedido

SI TU PRODUCTO APARECE COMO "AGOTADO", CONTÁCTANOS Y UN ASESOR TE DARA LA NUEVA FECHA DE STOCK. PARA PRODUCTOS "SOBRE PEDIDO" TE PROPORCIONAREMOS UNA FECHA DE ENTREGA ESTIMADA.





802.3bt PoE ++: 90 ~ 95 W sobre una solución UTP de 4 pares







Para satisfacer la demanda de varios dispositivos alimentador por PoE, se proporciona cinco modos de salida de energía PoE



  • Modo de salida de potencia PoE ++ de 90 W 802.3bt (pines 1, 2, 3, 6 + pines 4, 5, 7, 8)
  • Modo de salida de potencia UPOE / PoH de 95 W (pines 1, 2, 3, 6 + pines 4, 5, 7, 8)
  • Modo de salida de potencia PoE de 30 W de final de tramo (pines 1, 2, 3, 6)
  • Modo de salida de potencia PoE de 30 W de alcance medio (pines 4, 5, 7, 8)
  • Modo de salida de potencia de 60 W (pines 1, 2, 3, 6 + pines 4, 5, 7, 8)





Monitoreo de la PD conectada en tiempo real a través de la acción de ping.





Programa de PoE para ahorro de energía





Reciclado de energía programado









Protocolo de tiempo 1588 para redes de computación industrial

La serie IGS-6325 es ideal para aplicaciones de telecomunicaciones y Carrier Ethernet, ya que admite la prestación de servicios MEF y la temporización sobre soluciones de paquetes para IEEE 1588 y Ethernet síncrona.





Alerta de evento de captura SMTP / SNMP





Alerta de alarma efectiva para una mejor protección





Entrada digital y salida digital para alarma externa





Hardware Specifications
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Ports 2 1000BASE-SX/LX/BX SFP slot interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX SFP and 2500BASE-X SFP
SFP+ Ports N/A
PoE Injector Ports 8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps/non-blocking
Throughput (packet per second) 14.8Mpps@ 64 bytes packet
Address Table 16K entries, automatic source address learning and aging
Shared Data Buffer 32Mbits
Jumbo Frame 10Kbytes
SDRAM 512Mbytes
Flash Memory 64Mbytes
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Connector Removable 6-pin terminal block for power input
　Pin 1/2 for Power 1&comma; Pin 3/4 for fault alarm&comma; Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
　Pin 1/2 for DI 1 & 2&comma; Pin 3/4 for DO 1 & 2&comma; Pin 5/6 for GND
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI) 2 digital input:
　Level 0: -24~2.1V (±0.1V)
　Level 1: 2.1~24V (±0.1V)
　Input load to 24V DC&comma; 10mA max.
Digital Output (DO) 2 digital output:
　Open collector to 24VDC&comma; 100mA
Enclosure IP30 aluminum case
Installation DIN-rail or wall mounting
Dimensions (W x D x H) 76.8 x 107.3 x 152 mm
Weight 1&comma;138g
Power Requirements Dual DC 48~56V&comma; 7.5A max.
(>52V DC for 802.3bt PoE++ output recommended)
Power Consumption Max. 27 watts/92.13BTU@56V DC input (System on)
Max. 395 watts/1&comma;347.80BTU@56V DC input (Full loading with 802.3bt PoE++ function)
ESD Protection Air 8KV DC
Contact 6KV DC
Surge Protection 4KV DC
LED Indicator System:
　Power 1 (Green)&comma; Power 2 (Green)
　Fault Alarm (Red)
　Ring (Green)&comma; Ring Owner (Green)
　DIDO (Red)
Per 10/100/1000T RJ45 PoE++ Port:
　1000Mbps LNK/ACT (Green)
　10/100Mbps LNK/ACT (Amber)
　802.3bt PoE++-in-use x 1 (Green)
　802.3at/af PoE-in-use x 1 (Amber)
Per SFP Interface:
　1000 LNK/ACT (Green)
　100 LNK/ACT (Amber)
Per SFP+ Port:
　10Gbps LNK/ACT (Green)
　1Gbps LNK/ACT (Amber
PoE Usage:
　80W&comma; 160W&comma; 240W&comma; 320W (Amber)
Power Over Ethernet
PoE Standard IEEE 802.3bt PoE++ Type-4 PSE
Backward compatible with 802.3at PoE+ PSE
PoE Power Supply Type â–  802.3bt
â–  UPOE/POH
â–  End-span
â–  Mid-span
â–  Force
PoE Power Output 802.3bt PoE++
　- Per port 52V~56V DC (depending on the power supply)&comma; max. 90 watts UPoE(PoH)
　- Per port 52V~56V DC (depending on the power supply)&comma; max. 95 watts IEEE 802.3at Standard
　- Per port 52V~56V DC (depending on the power supply)&comma; max. 36 watts Force
　- Per port 52V~56V DC (depending on the power supply)&comma; max. 60 watts
Power Pin Assignment End-span: 1/2(-)&comma; 3/6(+)
Mid-span: 4/5(+)&comma; 7/8(-)
802.3bt/UPoE: 1/2(-)&comma; 3/6(+)&comma;4/5(+)&comma; 7/8(-)
PoE Power Budget 360W maximum (depending on power input)
PoE Ability PD @ 12.5 watts 8 units
PoE Ability PD @ 25 watts 8 units
PoE Ability PD @ 51 watts 6 units
PoE Ability PD @ 71 watts 4 units
PoE Management Functions
Active PoE device alive detects Yes
PoE Power Recycle Yes&comma; daily or predeinded schedule
PoE Schedule 4 schedule profiles
PoE Extend Mode Yes&comma; max. 160 to 200 meters
PoE System Management System PoE Admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-termperature threshold alarm
PoE usage threshold alarm
PoE Port Management Port Enable/Disable/Schedule
PoE mode control
- 802.3bt
- UPoE
- 802.3at End-span
- 802.3at Mid-span
Force mode
Port Priority
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port Status Display each port’s speed duplex mode&comma; link status&comma; flow control status&comma; auto negotiation status&comma; trunk status
Port Mirroring TX/RX/both
Many-to-1 monitor
VLAN 802.1Q tagged VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 256 VLAN groups&comma; out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 3 trunk groups with 4 ports per trunk group
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD Snooping IPv6 MLD (v1/v2) snooping&comma;
IPv6 MLD querier mode support
Supports 255 MLD groups
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
　- MAC Address
　- IP Address
　- Ethertype
　- Protocol Type
　- VLAN ID
　- DSCP
　- 802.1p Priority
Up to 256 entries
Bandwidth Control Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
QoS Traffic classification based&comma; strict priority and WRR
8-level priority for switching
　- Port number
　- 802.1p priority
　- 802.1Q VLAN tag
　- DSCP/TOS field in IP packet
Synchronization IEEE 1588v2 PTP(Precision Time Protocol)
　- Peer-to-peer transparent clock
　- End-to-end transparent clock
Layer 3 Functions
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 128 routing entries
Routing Protocols IPv4 hardware static routing
IPv6 hardware static routing
OSPFv2 dynamic routing
Management
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1&comma; v2c
Secure Management Interfaces SSHv1/SSHv2&comma; TLS&comma; SSL&comma; SNMP v3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
SNMP MIBs RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1&comma; 2&comma; 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Standards Conformance
Regulatory Compliance FCC Part 15 Class A
CE:
EN55032
EN55035
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
